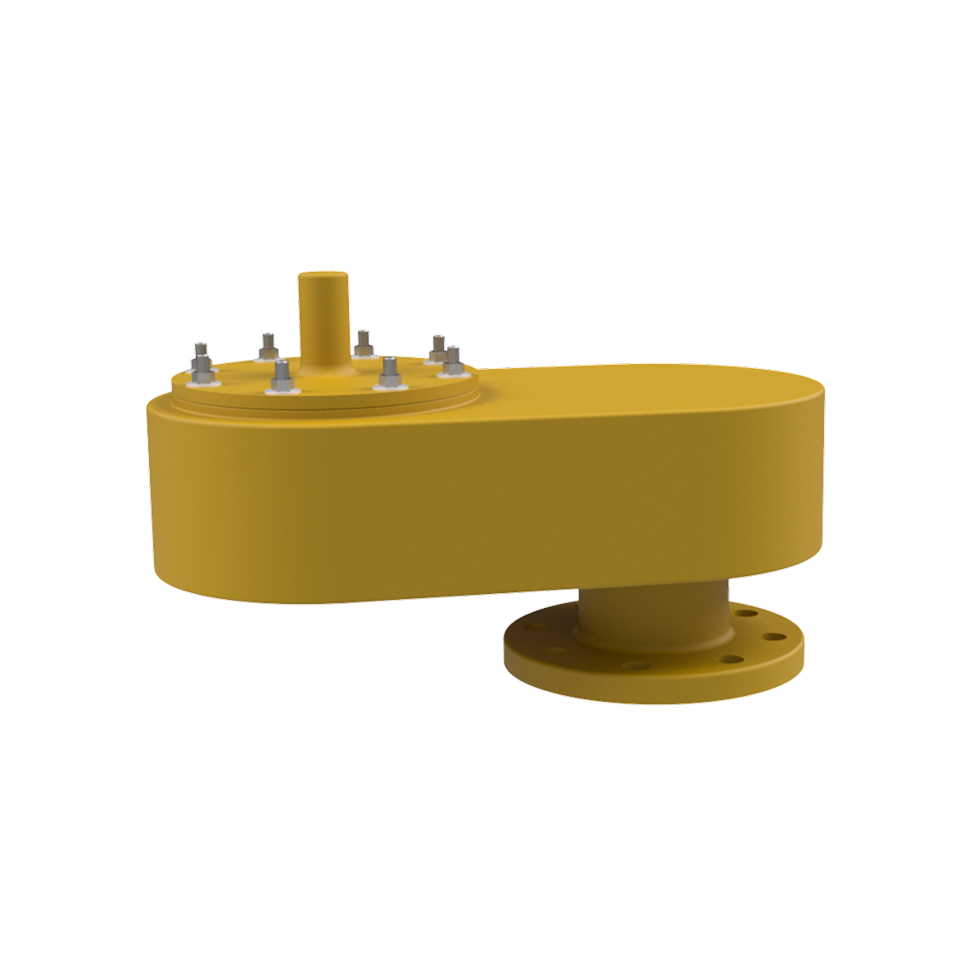

Vacuum vents are weight-loaded relief devices that protect atmospheric storage tanks from vacuum collapse by admitting air when internal pressure drops below a calibrated set point. They address the hazard of tank shell buckling or roof collapse caused by vacuum conditions that develop during product withdrawal, vapor condensation from rapid temperature drops, or steam-out cleaning operations. Unlike combined P/V conservation vents, vacuum-only models contain a single vacuum pallet and no pressure relief mechanism.
The vacuum pallet rests on a machined seat inside the vent body, held closed by calibrated weights. When internal tank pressure falls below atmospheric by more than the set point value, atmospheric pressure lifts the pallet against the weight load and air enters the tank. When pressure equalizes, the pallet reseats under its own weight and the tank returns to a sealed condition. The device cycles automatically with each vacuum event, requiring no external power or operator intervention.
Vacuum vents mount on standard tank roof nozzles and are sized per API 2000 for the tank’s maximum in-breathing rate. Set points are adjusted by adding or removing calibrated weights. Construction materials include carbon steel, stainless steel, and aluminum to match stored product vapor characteristics.
A combined P/V conservation vent provides both pressure and vacuum relief in one device. A vacuum-only vent omits the pressure pallet, relying on a separate device, typically a pressure conservation vent or blanketing valve overpressure path, to handle overpressure conditions. Specify vacuum-only when another device already handles pressure relief at the same tank. For a side-by-side comparison, see the breathing vent selection guide on the Conservation Vents & Seals page.
Vacuum vents are specified when a tank requires dedicated vacuum protection at its own nozzle while pressure relief is handled separately:
Separating vacuum relief from pressure relief allows each device to be sized precisely for its function, maintained on its own schedule, and documented individually for regulatory compliance without affecting the other relief path.
A dedicated vacuum vent can be sized to the full in-breathing requirement of the tank without sharing nozzle capacity with a pressure pallet, delivering maximum vacuum relief flow through the available nozzle diameter.
The single-pallet, weight-loaded design has no moving parts beyond the pallet itself, no springs to fatigue, and no pilot mechanisms to maintain, providing years of reliable service between rebuilds.
Changing the vacuum set point requires only adding or removing calibrated weights from the pallet stack, a procedure completed in minutes without tools, without removing the vent from the nozzle, and without breaking the tank seal.
A dedicated vacuum vent provides a single-purpose air intake point that can be fitted with inlet screens, filters, or desiccant elements to protect stored product quality without routing conditioned air through a shared P/V vent body.
| Attribute | P/V Conservation Vent | Pressure-Only Vent | Vacuum-Only Vent |
|---|---|---|---|
|
Primary Function
|
Provides both pressure and vacuum relief for tanks requiring bidirectional breathing control in a single device | Relieves overpressure only, used where vacuum relief is provided by a separate device or is not required | Relieves vacuum only, used where pressure relief is provided by a separate device such as a blanketing valve |
|
Pallet Configuration
|
Two independent pallet stacks: one pressure pallet and one vacuum pallet in a common housing | Single pressure pallet stack; no vacuum pallet installed | Single vacuum pallet stack; no pressure pallet installed |
|
Typical Set-point Range
|
Pressure: 0.5 to 16 oz/sq in.; Vacuum: 0.5 to 8 oz/sq in. (adjustable by weight selection) | 0.5 to 16 oz/sq in. pressure relief (adjustable by weight selection) | 0.5 to 8 oz/sq in. vacuum relief (adjustable by weight selection) |
|
When to Specify
|
Default choice for most atmospheric fixed-roof tanks where both pressure and vacuum protection are needed at one nozzle | Tanks with inert gas blanketing where a separate blanketing valve handles vacuum makeup and only pressure relief is needed at this nozzle | Tanks where pressure relief is handled by a dedicated pressure vent or pilot-operated valve at a separate nozzle |
|
Regulatory Driver
|
API 2000 (combined thermal breathing), EPA 40 CFR 60/63 (emission control), NFPA 30 (flammable liquids storage) | API 2000 (pressure relief sizing), often paired with blanketing valves for nitrogen conservation | API 2000 (vacuum relief sizing), API 650 (tank structural vacuum limits) |
|
Common Pairing
|
Flame arrester at the vent outlet for ignition prevention; emergency vent for fire-case protection | Blanketing valve for vacuum makeup on the same tank; flame arrester at the vent outlet | Pressure vent or blanketing valve for pressure relief on the same tank |
|
Recommendation
|
|
|
|
Weight-loaded vacuum relief for atmospheric storage tanks, providing air admission to prevent tank collapse during product withdrawal and thermal contraction.
Corrosion-resistant vacuum relief for tanks storing chemicals or products whose vapors attack carbon steel vent components.
Snap-action vacuum relief for tanks requiring tighter sealing or higher relief capacity than weight-loaded vacuum vents can deliver through the same nozzle size.
