Top Mount Level Control Switches

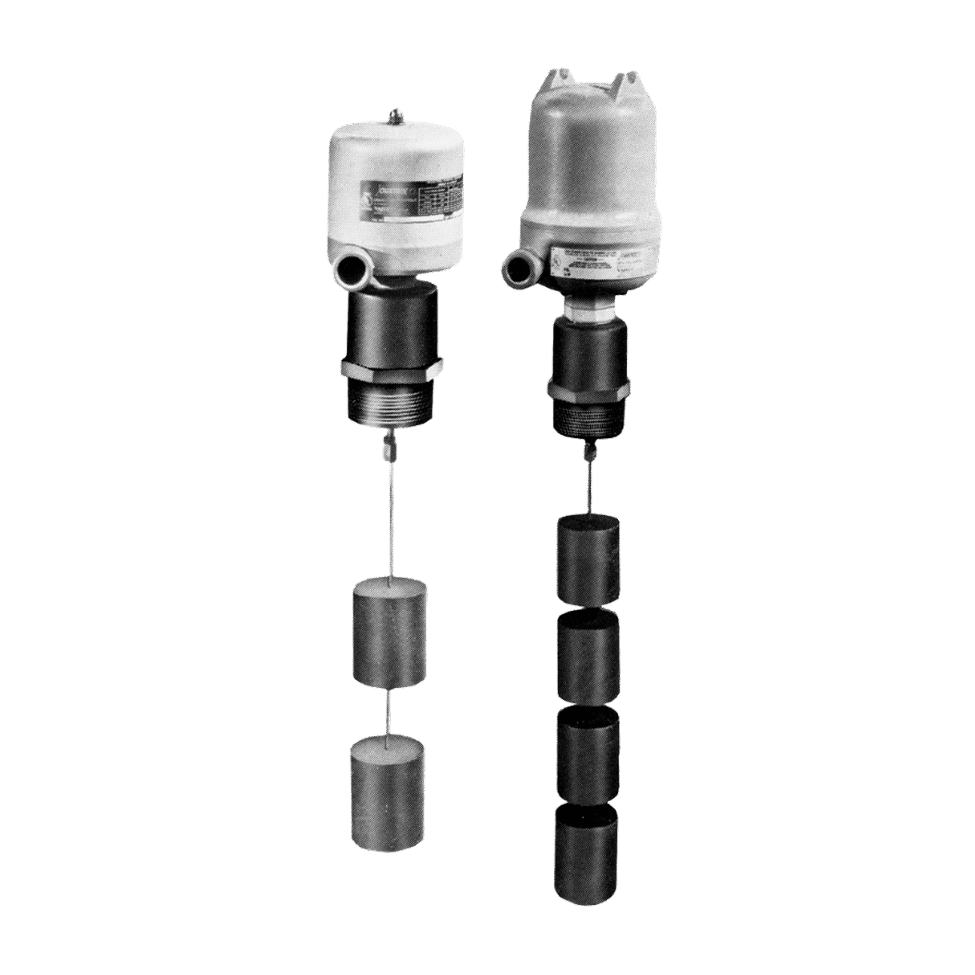

A top mount level control switch is a mechanical level detection device that uses buoyancy to trigger an electrical alarm or control action at a preset liquid level. The switch installs through a single top nozzle, with no side connections or external chambers required. As liquid rises or falls past the detection point, the change in buoyant force on a weighted displacer drives a magnetically coupled snap-action switch, opening or closing a SPDT or DPDT contact for alarms, pump control, or safety interlocks.

The operating cycle is purely mechanical. A spring-balanced displacer hangs inside an isolation tube that extends into the tank. When liquid reaches the displacer, buoyancy lifts the assembly against the spring force. A permanent magnet coupled to this movement actuates the sealed electrical switch with a positive make-or-break action, producing chatter-free switching even under turbulence, foam, or vapor conditions. No external power is required for the sensing function, and no moving linkages penetrate the process boundary.

Displacer material determines application fit. Graphite handles aggressive petroleum and chemical services at specific gravities as low as 0.35. Porcelain suits water, wastewater, and general-purpose applications. Stainless steel resists acids and high temperatures to 500°F. Lead displacers, mounted on beaded chain, serve floating-roof tanks where the switch must detect roof position rather than liquid level.
