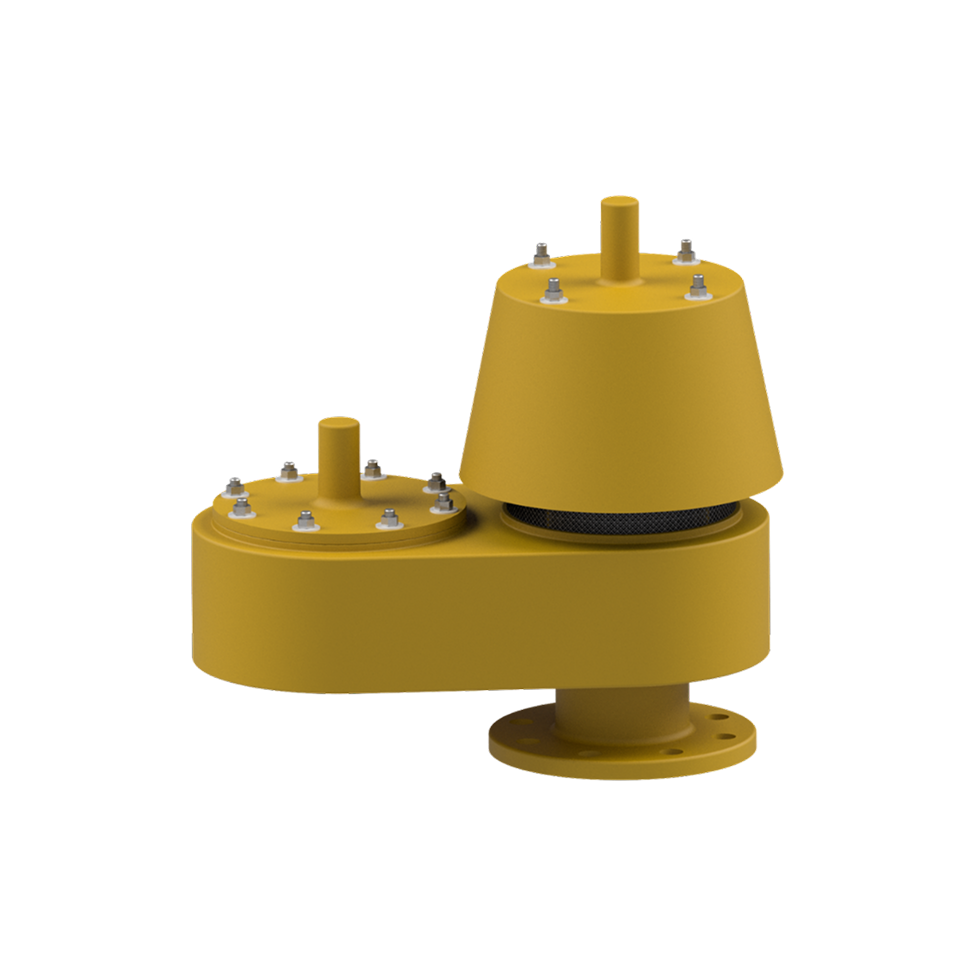

Conservation vents, also called pressure/vacuum (P/V) vents, are weight-loaded relief devices mounted on storage tank roofs that allow the tank to breathe in a controlled manner. They protect the tank shell from overpressure and vacuum damage caused by thermal expansion, product transfer, and ambient temperature changes while minimizing the release of vapors to atmosphere. Every fixed-roof atmospheric storage tank must breathe, and the conservation vent ensures that breathing occurs only when internal pressure or vacuum exceeds safe thresholds.
The vent contains two independent pallet assemblies, one for pressure relief and one for vacuum relief, each held closed by calibrated weights. When internal tank pressure exceeds the pressure set point, the pressure pallet lifts to release vapor. When vacuum exceeds the vacuum set point, the vacuum pallet lifts to admit air. Both pallets reseat automatically when the condition normalizes. This weight-loaded design requires no external power, control signals, or operator intervention.
Conservation vents mount on standard tank roof nozzles and are sized per API 2000 based on the tank’s thermal breathing rate and maximum pumping-in and pumping-out flow rates. Set points are adjusted by adding or removing weights from the pallet stacks, and construction materials are selected to match the stored product’s vapor corrosivity.
Conservation vents handle normal tank breathing during routine operations, pumping, and temperature changes. Emergency vents handle abnormal overpressure from external fire exposure or equipment failure, providing large-volume relief that conservation vents are not sized to deliver. Most tanks require both: a conservation vent for daily breathing and an emergency vent for fire-case protection. Conservation vents control emissions; emergency vents prevent catastrophic failure.
Conservation vents are specified on virtually every fixed-roof atmospheric storage tank that must control vapor emissions while preventing structural damage from pressure and vacuum:
Weight-loaded pallets operate purely on the pressure differential between the tank vapor space and atmosphere, requiring no electricity, pneumatics, control signals, or operator intervention to provide continuous protection through power outages and control system failures.
The sealed pallet design keeps the tank vapor space closed during normal conditions, releasing vapor only when pressure exceeds the set point, reducing the cumulative fugitive emissions that contribute to Title V inventories compared to open venting or loose-fitting thief hatches.
Set-point adjustment requires only adding or removing calibrated weights from the pallet stack. Field rebuilds use standard gaskets and pallet assemblies without specialized tools, keeping maintenance within the capability of on-site operations staff.
A common vent platform across dozens or hundreds of tanks in a terminal allows standardized spare parts inventory, consistent maintenance procedures, and uniform operator training across the entire facility.
Adjustable weight stacks allow the same vent body to be recalibrated for different set points when the stored product changes, accommodating seasonal product switches and terminal flexibility without replacing the vent device.
| Attribute | P/V Conservation Vent | Pressure-Only Vent | Vacuum-Only Vent |
|---|---|---|---|
|
Primary Function
|
Provides both pressure and vacuum relief for tanks requiring bidirectional breathing control in a single device | Relieves overpressure only, used where vacuum relief is provided by a separate device or is not required | Relieves vacuum only, used where pressure relief is provided by a separate device such as a blanketing valve |
|
Pallet Configuration
|
Two independent pallet stacks: one pressure pallet and one vacuum pallet in a common housing | Single pressure pallet stack; no vacuum pallet installed | Single vacuum pallet stack; no pressure pallet installed |
|
Typical Set-point Range
|
Pressure: 0.5 to 16 oz/sq in.; Vacuum: 0.5 to 8 oz/sq in. (adjustable by weight selection) | 0.5 to 16 oz/sq in. pressure relief (adjustable by weight selection) | 0.5 to 8 oz/sq in. vacuum relief (adjustable by weight selection) |
|
When to Specify
|
Default choice for most atmospheric fixed-roof tanks where both pressure and vacuum protection are needed at one nozzle | Tanks with inert gas blanketing where a separate blanketing valve handles vacuum makeup and only pressure relief is needed at this nozzle | Tanks where pressure relief is handled by a dedicated pressure vent or pilot-operated valve at a separate nozzle |
|
Regulatory Driver
|
API 2000 (combined thermal breathing), EPA 40 CFR 60/63 (emission control), NFPA 30 (flammable liquids storage) | API 2000 (pressure relief sizing), often paired with blanketing valves for nitrogen conservation | API 2000 (vacuum relief sizing), API 650 (tank structural vacuum limits) |
|
Common Pairing
|
Flame arrester at the vent outlet for ignition prevention; emergency vent for fire-case protection | Blanketing valve for vacuum makeup on the same tank; flame arrester at the vent outlet | Pressure vent or blanketing valve for pressure relief on the same tank |
|
Recommendation
|
|
|
|
Combined pressure and vacuum relief for atmospheric storage tanks, providing weight-loaded breathing control that minimizes fugitive emissions during normal tank operations.
Pressure relief for inert-gas-blanketed tanks where vacuum makeup is provided by a separate blanketing valve, protecting the blanket while preventing overpressure.
Corrosion-resistant pressure and vacuum relief for tanks storing chemicals, acids, or products whose vapors attack carbon steel vent components.
