Varec 9760 TMC

Rugged Tactical Mobile Computer

Get a Quote ↵

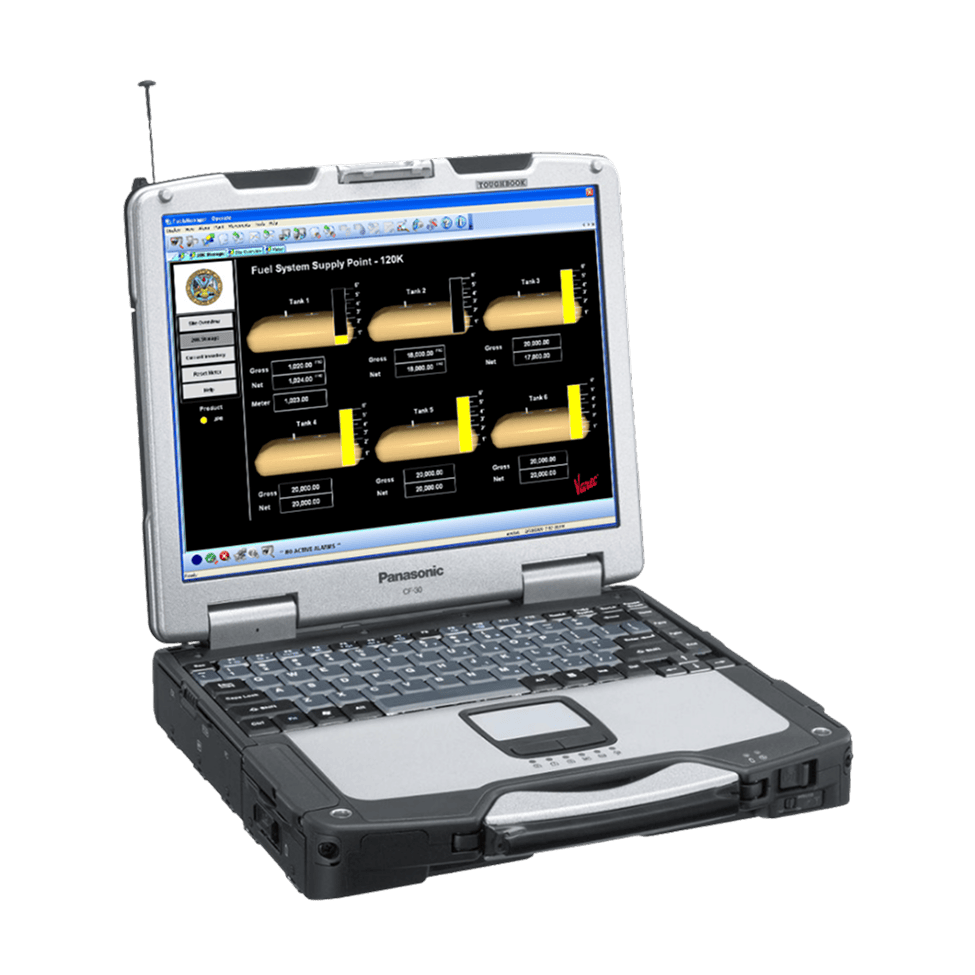

Varec 9760 TMC

The Varec 9760 Tactical Mobile Computer (TMC) is designed for fuel supply officers, petroleum operations NCOs, forward logistics managers, aviation fueling teams, and disaster-response coordinators who need fuel accountability at the point of operation in conditions that defeat standard laptops.

Unlike a commercial notebook pressed into tactical service, the 9760 TMC is tested to MIL-STD-810G for drop, vibration, humidity, and temperature, sealed to IP65 against dust and water jets, and fitted with a 14-inch FHD anti-glare display readable in direct sunlight.

Connected to the 8250 Tactical Interface Converter via RS232 or USB, the TMC consolidates data from every 8240 TDU and 7660 Tactical Fuel Gauge on site into a single operator view: real-time inventories, receipt and issue transactions, and daily accountability reports.

Each unit ships with FuelsManager® Defense pre-installed and configured by Varec engineering for the specific fuel point, so the operator connects, powers on, and has full visibility within minutes. Optional mobile broadband and GPS enable connected reporting.

Approved for normal locations in the USA and Canada and SGS certified, the 9760 TMC is the command-layer element of the TacFuels stack running through the 7660 TFG, 8240 TDU, and 8250 TIC.

Varec 9760 TMC
Varec 9760 TMC
02

Features

MIL-STD-810G Ruggedization

Tested to military drop, vibration, humidity, and temperature standards aligned with MIL-STD-810G expectations, supporting reliable operation in environments typical of forward fuel sites.

IP65 All-Weather Sealing

Fully sealed against dust ingress and protected against water jets, keeping electronics and the display functional during sandstorms, driving rain, and harsh expeditionary conditions.

14-inch FHD Outdoor Display

A 1920 × 1080 anti-glare screen with Direct-Vue technology delivers readable operator visibility in direct sunlight where standard laptop displays wash out.

Factory Pre-Configured FuelsManager® Defense

Varec engineering installs and configures FuelsManager® Defense for the specific fuel point before shipment, so the TMC is operational on arrival without on-site setup.

Full Fuel-Point Data Aggregation

Via the 8250 TIC to site 8240 TDUs and 7660 Tactical Fuel Gauges, the TMC consolidates inventory, transactions, and daily reports into one console.

Optional Wireless and GPS

Mobile broadband and GPS options enable network-connected daily reporting and location-aware fuel accountability across distributed fuel points.

Applications

  • Forward Operating Base Fuel Points: Forward operators need real-time stock and transaction records at dispense; the 9760 TMC presents FuelsManager® inventory and accountability data for daily fuel reporting.
  • Expeditionary Aviation Fuel Farms: Aviation fueling demands precise issue tracking per aircraft. The TMC logs every dispense with full transaction detail for the aviation fuel account.
  • Multi-TDU Tactical Fuel Farms: Tactical fuel farms with several 8240 TDUs need unified visibility; the TMC consolidates inventory from all tanks into one display via the 8250 TIC.
  • Disaster Relief Fuel Operations: Austere disaster-response environments demand hardware that survives the conditions it is deployed into. MIL-STD-810G testing supports reliable operation where commercial laptops would fail.
  • Military Logistics Hub Reporting: Daily accountability reports must flow upstream. The TMC transfers FuelsManager® Defense data to FuelsManager® enterprise systems for command-level inventory visibility.
  • Remote Oil and Gas Site Offices: Remote sites without full IT infrastructure need a self-contained fuel accountability station; the pre-configured TMC operates as a standalone system from power-on.
03

Specifications

Parameter

Specification

Ruggedization Standard

MIL-STD-810G program testing (drop, vibration, humidity, temperature)

Environmental Sealing

IP65 (fully dust-tight; protected against water jets)

Processor

7th Gen Intel® Core™ i3-7130U (Dual-Core, 3 MB cache, 2.7 GHz, 15 W)

Operating System

Windows 10 Pro 64-bit (English, French, Spanish)

Memory

8 GB (2 × 4 GB) 2,400 MHz DDR4 Non-ECC (standard)

Storage

2.5-inch 500 GB 7,200 RPM SATA hard drive (standard)

Display

14-inch FHD WVA (1920 × 1080) anti-glare, Direct-Vue technology

Camera

Integrated camera with privacy shutter and microphone

Wireless

Qualcomm® QCA61x4A 802.11ac dual-band (2 × 2) Wi-Fi + Bluetooth 4.2

Connectivity Options

Mobile broadband and GPS (optional)

Host Connection

RS232 (standard TF232COM cable) or USB (optional) to 8250 TIC

Power Supply

90 W rugged AC adapter, 7.4 mm elbow barrel

Primary Battery

3-cell, 51 Whr, ExpressCharge capable

Software

FuelsManager® Defense (pre-installed and configured by Varec)

System Capacity

Supports up to 28 collapsible storage tanks per TacFuels® system

Configuration

Factory pre-configured by Varec engineering for the specific fuel point; no on-site software setup required

Approvals

Approved for normal locations (USA and Canada); SGS certified

Contact Support
2026 COST ESTIMATE

Contact Support

If you have questions not covered here, please contact the Cognesense support team for assistance.

Contact Us ↵

Does the 9760 TMC come with FuelsManager® Defense already installed?

−

Yes. All software installation and configuration is completed by Varec engineering before shipment. The TMC arrives pre-configured for its assigned fuel point. Operators connect it to the 8250 TIC, power on, and the system is immediately operational with no on-site setup.

Can the 9760 TMC be used outdoors in direct sunlight?

+

Yes. The 14-inch FHD display uses Direct-Vue anti-glare technology to remain readable in direct sunlight, and the IP65-sealed enclosure keeps electronics protected in open-air expeditionary control areas.

How does the 9760 TMC connect to the rest of the TacFuels system?

+

The TMC connects to the 8250 Tactical Interface Converter via the included RS232 cable (TF232COM) or optionally via USB. The 8250 TIC is the bridge between the TMC and the field 8240 TDUs and 7660 Tactical Fuel Gauges. The TMC does not connect directly to TDUs or gauges.

Can data from the 9760 TMC be transferred to a central command system?

+

Yes. FuelsManager® Defense supports data transfer to FuelsManager® enterprise systems, enabling tactical-level inventory and transaction data to be consolidated at command level for daily accountability reporting.

What happens if the TMC loses power or needs replacement?

+

Strapping tables and configuration data reside in the non-volatile memory of the 8240 TDUs, not on the TMC. If the TMC is powered down or swapped with another unit pre-configured for the same fuel point, the system resumes normal operation without re-strapping tanks.

How does the 9760 TMC relate to the rest of the TacFuels family?

+

The 9760 TMC is the operator console of the TacFuels stack: 7660 Tactical Fuel Gauge at the tank, 8240 Tactical Data Unit at each tank, 8250 Tactical Interface Converter as the aggregator, and the 9760 TMC running FuelsManager® Defense as the operator view. The four elements are designed to work together as a complete fuel-point accountability system.

Is a non-ruggedized computer option available for permanent facilities?

+

Yes. For permanent or semi-permanent installations where full ruggedization is not required, a standard-duty computer running the same FuelsManager® Defense software is available. A Varec sales representative can help determine the right configuration.

What ruggedization and certification does the 9760 TMC carry?

+

The 9760 TMC is tested to MIL-STD-810G for drop, vibration, humidity, and temperature, sealed to IP65 against dust ingress and water jets, approved for normal locations in the USA and Canada, and SGS certified.

Summary

With over a century of fuel measurement and accountability heritage, Cognesense continues to deliver the operator-facing element of the TacFuels system through the Varec 9760 Tactical Mobile Computer. MIL-STD-810G program testing, IP65 sealing, a 14-inch sunlight-readable display, and FuelsManager® Defense pre-configured by Varec engineering turn the 9760 TMC into a deployable fuel-point console. Paired with the 7660 TFG, 8240 TDU, and 8250 TIC, it is trusted wherever you need to measure, monitor, and protect what matters most.
