EVO 1610

The EVO 1610 Microwave Radar Gauge delivers highly accurate, non-contact level measurement for terminal operators, refinery engineers, custody-transfer specialists, and EPC project teams.
The gauge provides 0.5 mm custody-grade accuracy and OIML R85 certification, ensuring audit-ready measurements for storage tanks and inventory management.
Unlike traditional pulse radar or servo gauges, the EVO 1610 uses 10 GHz Frequency-Modulated Continuous Wave (FMCW) radar technology. This allows it to deliver stable, drift-free level readings that are not affected by vapor, foam, agitation, or temperature changes.
With infrared remote calibration and multi-protocol communication capabilities, the EVO 1610 simplifies commissioning, reduces maintenance downtime, and provides long-term operational reliability for tank gauging applications worldwide.

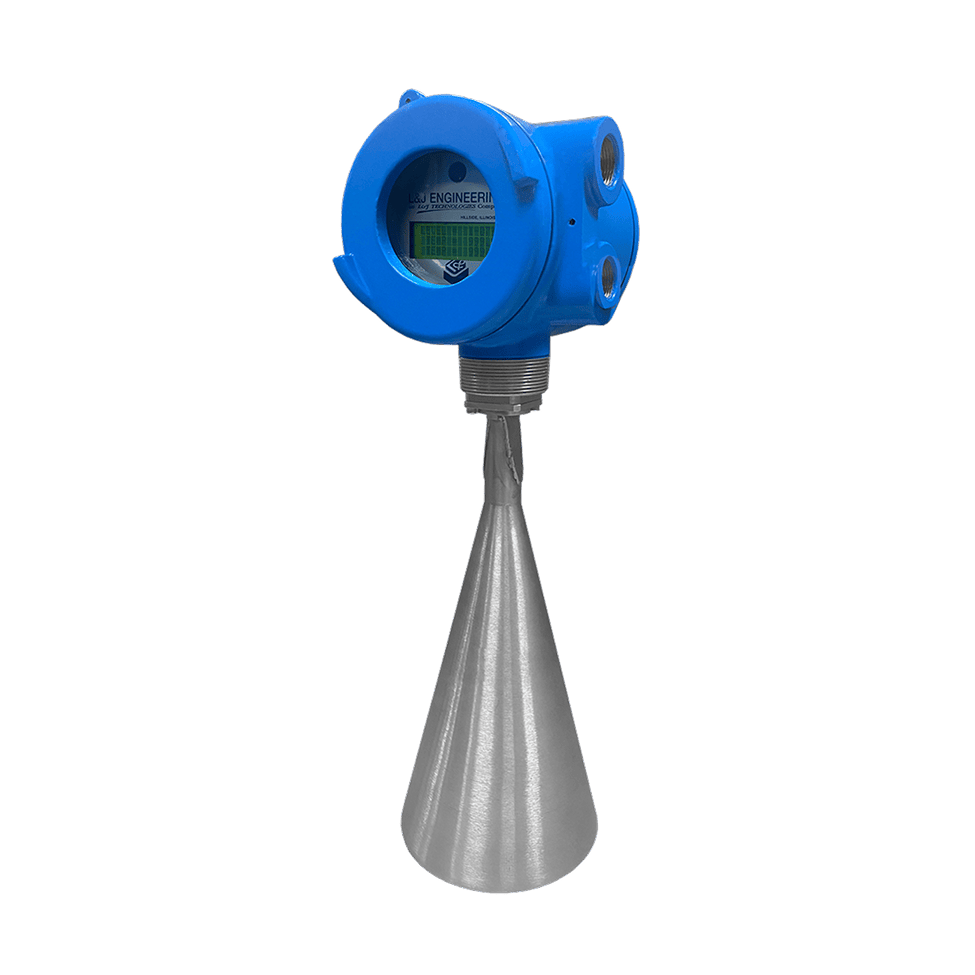

EVO 1610 Radar Level Gauge

Applications

Custody Transfer: Accuracy of ±0.5 mm provides precise, traceable volume data for fair trade measurement and reliable inventory reconciliation.
Challenging Liquids: FMCW radar technology penetrates vapor and foam, delivering stable measurements even in turbulent or foamy storage conditions.
Corrosive Storage: The non-contact radar design with a PTFE-sealed antenna minimizes fouling and extends gauge life in aggressive chemical environments.
Process Monitoring: Multi-protocol communication enables real-time inventory tracking, diagnostics, and integration with DCS, PLC, and SCADA systems.

Technical Specifications

Parameter

Specification

Model

EVO 1610 Microwave Radar Tank Gauge

Technology

Frequency-Modulated Continuous Wave (FMCW) Radar at 10 GHz

Measurement Accuracy

±0.5 mm (custody-grade)

Resolution

0.1 mm

Measurement Type

Continuous, non-contact, independent of vapor, temperature, or pressure variations

Medium Temperature Range

–40 °F to +185 °F (–40 °C to +85 °C)

Pressure Rating

Up to 150 PSIG or 300 PSIG (10 bar)

Housing Material

Aluminum or 316 Stainless Steel

Antenna Seal

PTFE for chemical resistance and long-term reliability

Power Supply

12 – 65 VDC

Communication Interfaces

RS-485 and L&J Tankway

Protocol Support

Compatible with integration into both legacy and modern control systems

Calibration Method

Intrinsically safe infrared remote calibration

Remote Calibration Device

MCG 2150 handheld calibrator

Tank Entry Requirement

Not required

Process Connection

2 inch NPT thread or ANSI/DIN flange

Certifications

OIML R85-1 & R85-2, FM, CSA, ATEX, IECEx

2026 COST ESTIMATE

Support

If you have questions not covered here, please contact the Cognesense support team for assistance.

Why is the EVO 1610 considered custody-grade?

−

The evo1610 achieves 0.5 mm accuracy and holds the OIML R85-1 & R85-2 certification. This official certification, combined with its high resolution, verifies that the measurement integrity is sufficient for high-value commercial transactions, reducing financial disputes and simplifying regulatory audits.

How does FMCW technology outperform traditional pulse radar in challenging conditions?

FMCW (Frequency-Modulated Continuous-Wave) constantly transmits and processes a signal via frequency shift, which provides a much stronger and more stable measurement than the intermittent reflection used by pulse radar. This allows the EVO 1610 to penetrate foam and ignore vapor density changes while maintaining accuracy, especially important in agitated process vessels.

Can the gauge be configured without opening the housing?

Yes. The evo1610 is designed for safety and efficiency. Configuration and diagnostics are performed using the MCG 2150 Infrared Remote Calibrator. This allows field technicians to communicate wirelessly with the gauge from the ground, ensuring the explosion-proof seal remains intact and enhancing worker safety.

Compatible Accessories

MCG 2150 Remote Calibrator: Intrinsically safe infrared handheld device used for configuration and calibration.
MCG 1650 Smart Core Display: Optional display unit supporting 4–20 mA, HART, average temperature, and spot temperature outputs.
Proximity Switches: Wired or wireless proximity switches for remote status indication and safety monitoring.
