Sonac 110

The Sonac 110 Ultrasonic Level Switch is designed for plant engineers, maintenance teams, and operations managers who require dependable, low-maintenance level monitoring in tanks, vessels, or pipelines.

This compact point level detector uses advanced ultrasonic technology to provide accurate on/off level detection for liquids, slurries, and certain solids.

Unlike traditional float or mechanical switches, the Sonac 110 operates without moving parts, making it resistant to fouling, vibration, and turbulence. This design ensures consistent performance, improved operational safety, and a long service life in demanding industrial environments.

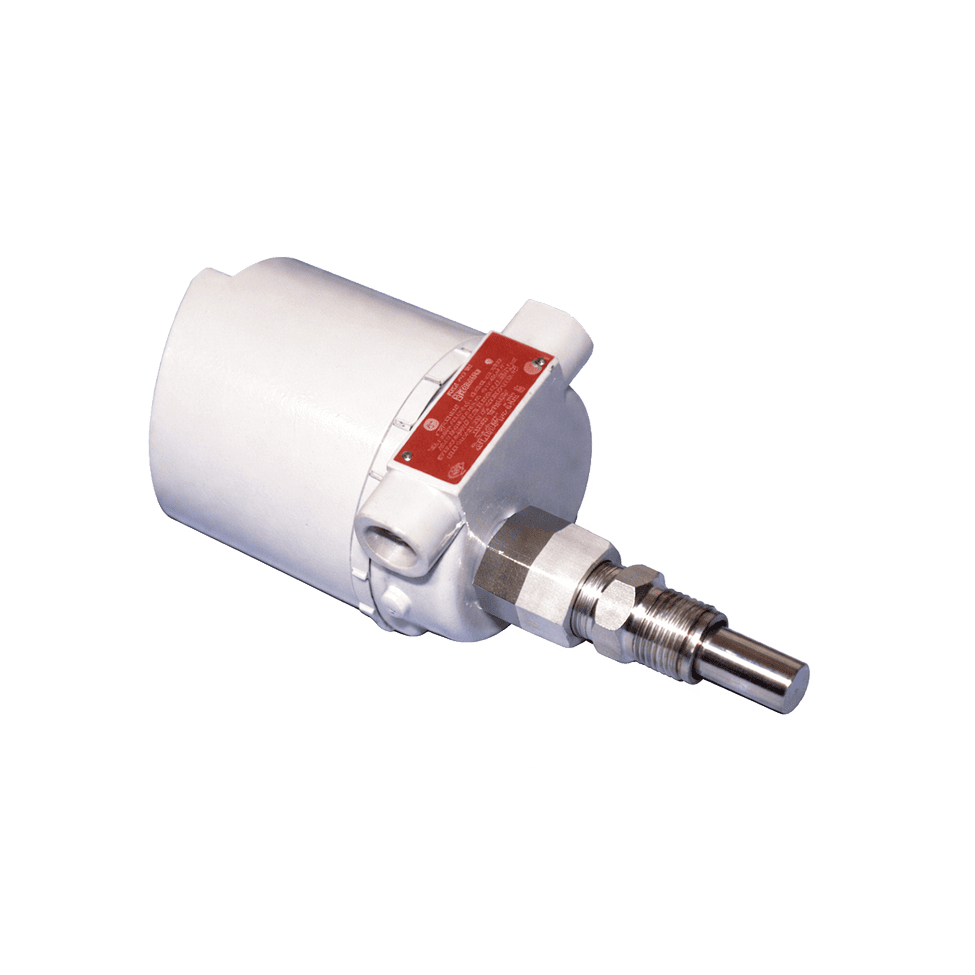

SONAC 110 Ultrasonic Level Switch

Applications

Water and Wastewater Treatment: High and low level detection in basins, clarifiers, and pumping stations.
Chemical and Petrochemical Processing: Reliable operation in corrosive or hazardous liquid environments.
Food and Beverage Processing: Sanitary configurations are available for hygienic storage and production systems.
Industrial Liquid Systems: Monitoring of oils, fuels, slurries, and cooling systems in industrial facilities.

Technical Specifications

Parameter

Description

Technology

Ultrasonic level switch

Mounting

Threaded or flanged compact probe design

Output Options

Relay, transistor, or 2-wire loop-powered versions

Power Supply

24 VDC standard (other options available)

Temperature Range

–40 °F to +160 °F standard; high-temperature options available

Pressure Rating

Up to 150 psig standard

Enclosure

NEMA 4X / IP65

Certifications

ATEX certification for EU hazardous areas; NEC Class I Div 1 options available for North America

2026 COST ESTIMATE

Support

If you have a question that is not covered here, please contact the Cognesense support team for assistance.

How does the ultrasonic technology in the Sonac 110 work for level detection?

−

The Sonac 110 sends a high-frequency ultrasonic signal across a small gap or along the probe tip. When liquid covers the sensor, it changes the way the sound wave propagates. The device’s electronics detect this change instantly to trigger an alarm, providing accurate on/off level detection without needing any mechanical actuation.

Is the Sonac 110 suitable for use in explosive atmospheres?

Yes. The Sonac 110 is available with versions certified for hazardous areas, including ATEX for European compliance and NEC Class I Div 1 options for North America, ensuring safe use in explosive environments.

What advantages does the Sonac 110 offer compared to mechanical float switches?

The primary benefit is reliability and zero maintenance. Unlike float switches, the Sonac 110 has no moving parts to wear out, stick, or become clogged by viscous liquids or buildup. This makes it far more dependable for long-term level monitoring in challenging industrial media.
