MCG 1350M

Ground Level Display

Get a Quote ↵

MCG 1350M

Terminal operators, maintenance teams, safety officers, and EPC project engineers require safe and convenient access to tank measurement data.

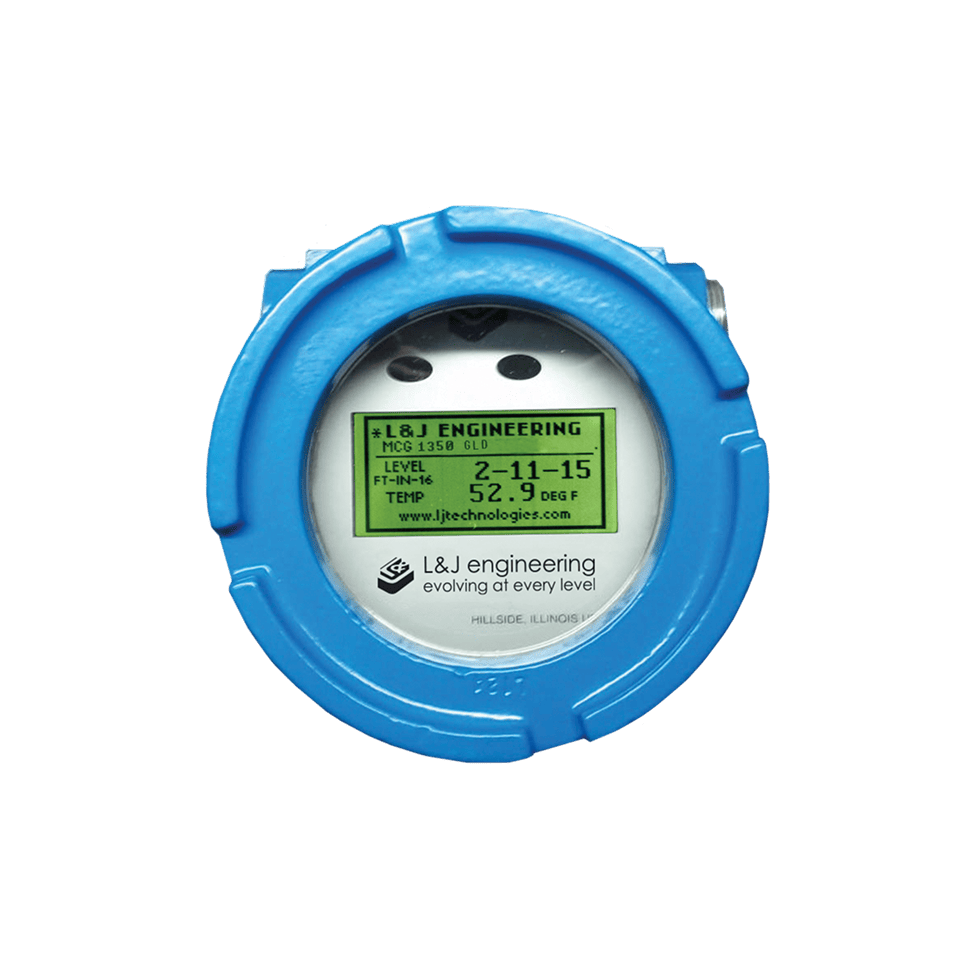

The MCG 1350M Ground Level Display (GLD) provides a rugged and easy-to-use solution for viewing tank information directly from ground level. The device displays product level, temperature, and alarm status from compatible L&J gauges without requiring operators to climb tanks or open gauge housings.

By bringing tank measurement data safely to ground level, the device improves operational efficiency, enhances safety, and supports regulatory compliance across terminal and storage operations.

MCG 1350M
MCG 1350M Ground Level Display
MCG 1350M

Features

Improved Operator Safety

Enables full configuration and diagnostics at ground level, eliminating tank climbing and reducing exposure to vapors and fall hazards.

Full-Function Interface

Replicates the gauge’s complete display and programming features, ensuring no loss of diagnostic or calibration capability during service.

Infrared Programming

Allows remote IR calibration using the MCG 2150, enabling adjustments without opening enclosures or entering hazardous areas.

Cross-Gauge Compatibility

Supports servo, radar, and transmitter models, simplifying system design and reducing the need for multiple display types.

Hazardous-Area Safety

Explosion-proof enclosure and UL/ATEX certifications ensure safe operation in classified environments with flammable atmospheres.

Enhanced Service Efficiency

Provides rapid access to operating data and configuration menus, reducing downtime and minimizing technician time on site.

Applications

  • Custody Transfer Validation: Enables users to confirm calibration and gauge data from ground level, improving safety and ensuring compliant custody-transfer documentation.
  • Tank Farm Operations: Centralizes access for mixed fleets of gauges, simplifying technician workflows and reducing training demands across large terminals.
  • Chemical & Petrochemical Plants: Supports safe operation in flammable atmospheres with explosion-proof construction and sealed IR programming capability.
  • Maintenance & Calibration: Eliminates the need for manual climbs during calibration or troubleshooting, reducing labor hours and improving service response time.
  • Environmental Compliance Sites: Provides safe, ground-level system access that keeps workers out of hazardous zones during emissions-controlled or regulated operations.
  • High-Utilization Facilities: Ensures rapid diagnostics and configuration during frequent operational changes, supporting uptime in continuous-process environments.
02

Specifications

Display

4-line × 20-character LCD (MCG 1350); Graphical LCD (MCG 1350M variant)

Programming

Infrared, via MCG 2150 handheld calibrator

Voltage

10–48 VDC

Dimensions

6.25” diameter × 4.375” depth

Weight

5 lbs (2.3 kg)

Safety Approvals

UL Explosion Proof, Class I Groups C & D CENELEC / ATEX II 2 G EEx d IIB T6 ABS Approved

Enclosure Options

Aluminum or NEMA-rated variants

Mounting

“U” bolt & mounting plate (recommended)

Accessories

Requires MCG 2150 handheld IR calibrator

Support
2026 COST ESTIMATE

Support

If you have questions not covered here, please contact support for assistance.

Contact Us ↵

Why is ground-level access to tank data an important safety improvement?

−

Ground-level access provided by the MCG 1350M eliminates the number one cause of industrial accidents in tank farms: falls from heights. It also reduces the need for technicians to open gauge housings, which preserves the explosion-proof seal and minimizes exposure to hazardous vapors.

Is the MCG 1350M compatible with existing tank gauges?

+

Yes, the MCG 1350M is designed to work seamlessly with Cognesense’s gauges and transmitters, including the MCG 1500 (servo), MCG 1600 (radar), and evo2600 series. It displays the same accurate, real-time data sent from the main device.

How is the MCG 1350M powered?

+

The display uses loop-powered operation, meaning it draws low-energy power directly from the communication lines of the connected L&J gauge. This eliminates the need for separate external power wiring, simplifying installation and reducing overall costs.

Summary

The MCG 1350M Ground Level Display brings tank gauging data to grade level, eliminating the need for operators to climb tanks for routine readings. Compatible with Cognesense’s full line of level, temperature, and alarm instruments, it provides a clear LCD readout and infrared programming via the MCG 2150 calibrator. The result is safer daily operations and faster commissioning across terminal and refinery environments.
