EVO 1650

Smart Core Display

Get a Quote ↵

EVO 1650

Terminal operators, field engineers, plant supervisors, inventory managers, and safety officers often require safe, ground-level access to tank gauge data, configuration settings, and calibration tools.

The EVO 1650 Smart Core Display provides an intrinsically safe interface for interacting with L&J and Cognesense radar and servo tank gauging systems. It enables operators and technicians to access tank data, configure instrumentation, and perform diagnostics without climbing tanks or opening explosion-proof enclosures.

Unlike conventional remote indicators, the EVO 1650 integrates directly with EVO Series radar gauges and MCG servo gauges, providing local display capabilities, system setup functions, and diagnostic tools.

The system features a graphical LCD interface, infrared configuration using the MCG 2150 Remote Calibrator, and support for multiple communication protocols. This combination simplifies commissioning, calibration, and troubleshooting while improving safety and efficiency.

Designed as a microprocessor-based smart terminal, the EVO 1650 supports RTD temperature inputs, 4–20 mA analog signals, discrete I/O, and Tankway, HART, Modbus, and RS-485 communications.

With a rugged NEMA 4X / IP65 enclosure and global hazardous-area certifications, the device delivers long-term reliability in refineries, storage terminals, chemical plants, and industrial tank farms.

EVO 1650

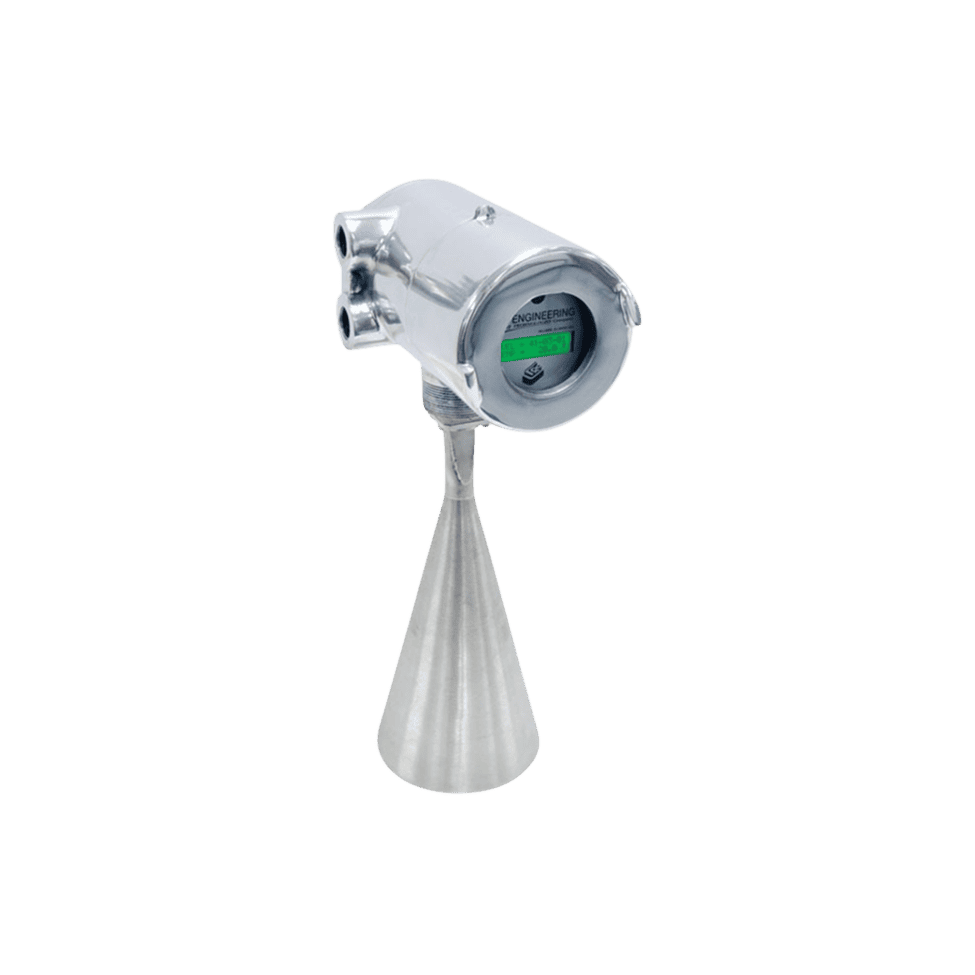

EVO 1650 Smart Core Display

Details

The EVO 1650 Smart Core Display acts as a centralized local interface for tank gauging systems.

It allows operators to view real-time tank measurements while enabling technicians to perform configuration, calibration, and diagnostics from a safe ground-level location. By eliminating the need to access tank tops or open instrument enclosures, the system reduces safety risks and simplifies routine maintenance tasks.

The device also consolidates display, communication, and power distribution functions into a single enclosure, reducing installation complexity during automation upgrades.

Typical Applications

  • Tank Calibration: Supports safe infrared calibration from ground level using the MCG 2150 Remote Calibrator, eliminating the need for technicians to climb tanks.
  • Operations Monitoring: Displays real-time measurements including tank level, temperature, alarm status, and gauge diagnostics for quick operational verification.
  • Maintenance and Diagnostics: Integrated diagnostic screens and event logs help technicians troubleshoot wiring issues, communication faults, and sensor problems quickly.
  • Retrofit Upgrades: Replaces older remote indicators while maintaining compatibility with EVO radar gauges, MCG servo gauges, and legacy Tankway systems.
  • Tank Farm Automation: Combines display functionality, power distribution, and communications in one enclosure, reducing installation costs during system upgrades.
  • Temperature Monitoring: Supports both direct RTD inputs and average temperature measurement systems, enabling accurate thermal monitoring within storage tanks.
02

Technical Specifications and Key Features

Parameter

Specification

Display

128 × 64 graphical LCD with backlight

Display Information

Multi-parameter display including level, temperature, alarms, and system status

Communication Protocols

Tankway, Modbus RS-485 (2-wire or 4-wire), HART, RS-232, optional WirelessHART

Inputs

Up to two 4–20 mA inputs, 3-wire RTD inputs (copper or platinum), averaged temperature input via MCG 2350, up to two discrete inputs

Outputs

Up to two 4–20 mA outputs, optional relay outputs (0, 2, or 4 relays)

Power Supply

12–70 VDC operating range

Environmental Ratings

NEMA 4X / IP65 / IP68 enclosure

Operating Temperature

–40 °F to +185 °F (–40 °C to +85 °C)

Hazardous Area Certifications

FM/CSA Class I Division 1, ATEX II 2G Ex d IIB, IECEx Ex db IIC Gb
Support
2026 COST ESTIMATE

Support

If you have questions not covered here, please contact support and our team will be happy to assist.

Contact Us ↵

How does the EVO 1650 improve worker safety?

−

The MCG 1650 drastically improves safety by enabling all gauge calibration and configuration to be performed using a wireless infrared remote from ground level. This eliminates the need for technicians to climb tanks or open explosion-proof housings, which are major safety risks in hazardous industrial environments.

Can the EVO 1650 be used with both radar and servo gauges?

+

Yes. The MCG 1650 Smart Core Display is designed for maximum compatibility and can interface directly with L&J’s entire evo Radar Series and MCG Servo Gauges. This universal compatibility reduces the number of spare parts and training required for your field personnel.

What communication protocols does the display support?

+

The display supports all common industrial protocols, including L&J Tankway, HART, and Modbus RS-485. This multi-protocol capability ensures that the data collected at the ground-level interface can be easily connected and communicated to your central DCS or inventory management system.

Is the EVO 1650 intrinsically safe for hazardous environments?

+

Yes. It has FM/CSA, ATEX, and IECEx certifications for operation in Class I, Div. 1 hazardous areas.

Can the EVO 1650 replace older field indicator displays?

+

Yes. Its protocol flexibility and analog/digital I/O allow drop-in modernization of older L&J or third-party systems.

Does the system support full calibration capabilities?

+

Yes. With the MCG 2150 calibrator, operators perform full configuration and calibration wirelessly without opening enclosures.

Is firmware upgradeable in the field?

+

Yes, Smart Flash enables firmware updates “on the fly” without removing power or disconnecting the device.

What parameters can be displayed on the interface?

+

Level, temperature, alarms, density (via paired gauge), discrete I/O status, and full diagnostic data depending on system configuration.

Compatibility

The EVO 1650 integrates with a wide range of Cognesense and L&J instrumentation:

  • EVO Radar Gauges (EVO 1500, 1600, 1610, 2600 series)
  • MCG Servo Gauges (1500SFI, 2000MAX)
  • MCG 300, 350, and 351 RTD temperature probes
  • MCG 2350 Average Temperature Converter systems
  • Standard 4–20 mA level or pressure transmitters
