Omnitrol 621 / 721 Control Switches

For tank farm operators, petroleum terminal engineers, floating-roof tank maintenance teams, and EPC specifiers who require reliable high-level and overfill protection on internal and external floating-roof storage tanks, the Omnitrol 621 / 721 Series delivers rugged, mechanically actuated level switching using dense lead displacers on stainless steel beaded chain.

Unlike lightweight floats or electronic sensors that can be affected by wind movement, roof vibration, sloshing, or electrical interference, the 621 / 721 uses high-mass lead displacers to ensure positive and stable switching at the correct height, even during roof movement or storm conditions.

With single-point (621) or dual-point (721) alarm capability, the device supports API 2350 high-level and high-high shutdown strategies for critical fuel storage safety.

Designed for hazardous environments, the system installs easily from the tank top without product intrusion, making it a dependable mechanical safeguard for terminals, refineries, and midstream operators.

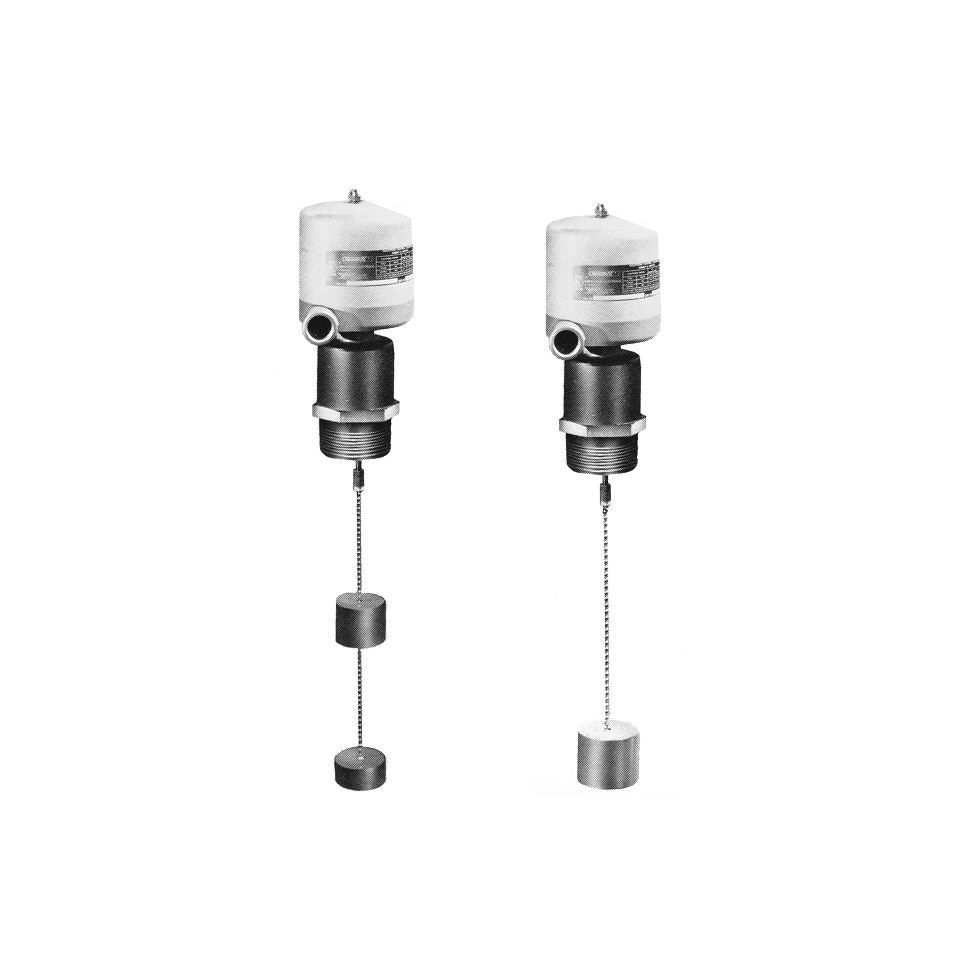

Omnitrol 621 / 721 Control Switches

Details

The Omnitrol 621 / 721 uses a weighted lead displacer suspended on a stainless steel beaded chain. As a floating tank roof rises, the chain lifts the displacer until it actuates a positive mechanical snap-action switch, providing definitive alarm activation.

This design addresses a common issue in floating-roof tanks: false alarms caused by wind, vibration, or liquid sloshing. The mass of the lead displacer keeps it stable until the roof reaches the designated alarm height, making it ideal for external floating roofs, internal pans, and tanks exposed to environmental movement.

Because the system is top mounted, it does not penetrate the tank roof, eliminating process breach points. This simplifies maintenance and improves worker safety.

Applications

Floating Roof Tanks: Lead displacers provide stable alarm operation, eliminating nuisance trips caused by wind or roof movement.
High and High-High Overfill Protection: The dual-stage 721 model supports spill prevention and API 2350 compliance for petroleum storage terminals.
Internal Floating Pan Tanks: The weighted displacer system ensures consistent alarm activation even with roof movement or product sloshing.
Pump Protection: The switch can be configured for low-level cutoff, preventing pumps from running dry and protecting equipment.

Technical Specifications

Parameter

Specification

Models

621 (single stage), 721 (dual stage alarms)

Sensing Method

Weighted lead displacer with stainless steel beaded chain

Mounting

2½″ NPT or flanged top mount

Housing Options

WR or Explosion Proof / Vapor Proof / Rain Tight

Temperature Range

−20 °F to +400 °F (−29 °C to +204 °C)

Switch Types

SPDT or DPDT micro switches

Power Requirements

None (mechanical actuation)

Certifications

UL and CSA approved

Typical Applications

Floating roof tanks, pump cutoff, overfill alarms

Chain / Hardware

Stainless steel beaded chain

Calibration

Factory set; custom chain lengths available

2026 COST ESTIMATE

Support

If you have a question not covered here, please contact support for assistance.

Why use a lead displacer instead of a float?

−

Lead has high density, making it stable against wind and roof vibration — avoiding false alarms common in floating-roof tanks.

What is the difference between the 621 and 721 models?

621: One alarm point (High)
721: Two independent alarm points (High & High-High) for API 2350 compliance

Can the switch be serviced without opening the tank?

Yes — all mechanics are external, allowing safe maintenance without tank entry.

How does the top-mounted design simplify maintenance?

By mounting on the roof of the tank, all mechanical components and the electrical switch housing are located outside the product. This allows field technicians to perform routine inspection, functional testing, and maintenance of the switch without requiring any tank entry, degassing, or breaching the liquid level, dramatically improving safety and reducing service time.

Does the dual-stage 721 model require two separate tank penetrations?

No. The Omnitrol 721 is a dual-stage switch that operates from a single top-mounted penetration. It contains two separate switching mechanisms, both actuated by the same displacer chain assembly, allowing you to establish two independent alarm setpoints (Hi and Hi-Hi) with one device.

Does the Omnitrol require external power?

No — it operates using mechanical displacer movement and magnetic switching.

Is it suitable for hazardous environments?

Yes — available in explosion-proof housings with UL/CSA approvals.

Where is this device typically used?

Floating-roof crude, refined product, and blend tanks at refineries, terminals, and tank farms.
