Shand & Jurs 94210 Emergency Vent and Manhole Cover

Hinged Emergency Vent Manhole

Get a Quote ↵

Shand & Jurs 94210 Emergency Vent and Manhole Cover

For tank-farm maintenance engineers, facility specifiers, and inspection planners, the Shand & Jurs 94210 combines emergency pressure relief and rapid tank access in a single hinged assembly for atmospheric and low-pressure storage tanks.

Unlike conventional bolt-on emergency vents that remain open after actuation and require manual reinstallation — and unlike separate manway covers whose gaskets must be replaced at every inspection — the hinged 94210 opens in seconds for tank entry and reseats automatically after an overpressure event.

A flexible diaphragm seals the pallet against a corrosion-resistant seat below setpoint. When pressure rises above setpoint, flow capacity rises rapidly — roughly 60 percent of a perfect orifice at 40 percent overpressure and around 75 percent at higher excursions — without losing the cover.

Available 8 through 36 inches with ANSI 150 or API 650 mounting. Optional Expanda-Seal reduces continuous vapor loss; the 94210 also serves fire-case emergency venting. See the 9420X lift-cover series where the highest fire-case capacity is required.

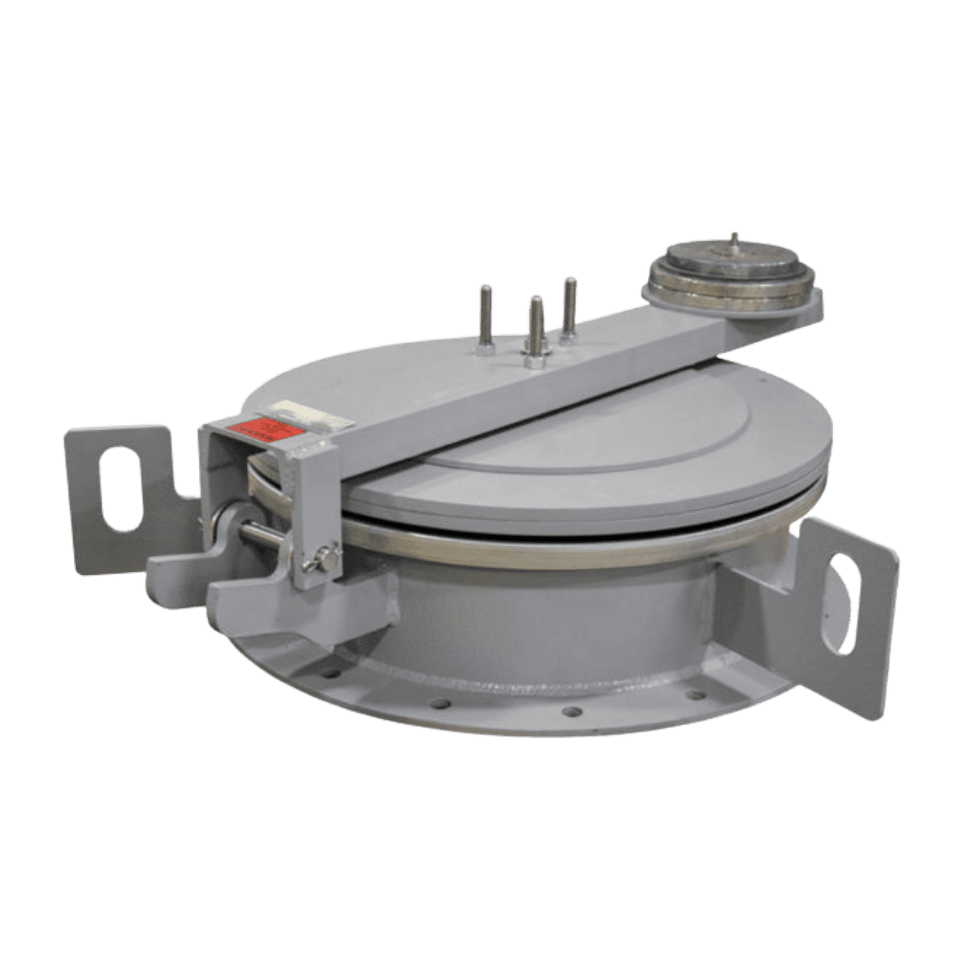

Shand & Jurs 94210
Shand & Jurs 94210 Emergency Vent and Manhole Cover
02

Features

Hinged Full-Opening Cover

Provides immediate tank access for inspection or cleaning without unbolting the cover or replacing the flange gasket at every service interval.

Auto-Reseating Design

After an overpressure event the cover automatically reseats and reseals, eliminating reinstallation labor and lost-cover risk associated with conventional emergency vents.

Flexible Diaphragm Pallet

Seals tightly below setpoint against a corrosion-resistant seat, minimizing continuous leakage during routine breathing while preserving emergency-capacity performance.

Rapid Capacity Rise

Delivers roughly 60 percent of perfect-orifice flow at 40 percent overpressure and about 75 percent at higher excursions, supporting fire-case sizing requirements.

Expanda-Seal Option

Self-energizing diaphragm seal holds leakage under 0.5 SCFH at 95 percent of setpoint, available on configurations with setpoints of 1.5 oz/in² or higher.

ANSI and API 650 Mounting

Available 8 through 36 inches with ANSI Class 150, API 650 (20″/24″), or EN1092 drillings, fitting standard roof maintenance openings.

Applications

  • Atmospheric Storage Tanks: Protects product and intermediate storage against abnormal overpressure while providing routine inspection access through a single roof penetration.
  • Tank Inspection Access: Hinged cover opens in seconds, shortening outage duration and confined-space preparation for routine cleanings, inspections, and audits.
  • Petroleum Storage: Protects crude, product, and intermediate tanks against fire-case and thermal-upset overpressure events while supporting scheduled internal inspection programs.
  • Chemical Storage: 316 stainless steel bodies and Expanda-Seal diaphragms extend service life in aggressive chemical vapor environments where leakage control is a priority.
  • Wastewater Tanks: Provides emergency venting and service access on covered wastewater and digester holding tanks subject to thermal and biogenic pressure events.
  • Fixed Digester Covers: Combines emergency venting with inspection access on fixed anaerobic digester covers where separate hardware would multiply leak paths and retrofit labor.
03

Specifications

Parameter

Specification

Device Type

Emergency pressure relief vent with hinged manhole cover

Sizes

8″, 10″, 12″, 16″, 18″, 20″, 24″, 30″, 36″

Set Pressure Range

Standard 1.0 oz/in² (8″) to 1.5 oz/in² (20–24″). Maximum up to 20 oz/in² (size-dependent). 30″ and 36″ consult factory. Expanda-Seal minimum 1.5 oz/in².

Leakage Performance

  • Standard pallet: ~1.0 SCFH at 90% of setpoint.
  • Expanda-Seal: <0.5 SCFH at 95% of setpoint.

Flow Efficiency

~60% @ 40% overpressure; ~75% higher

Mounting

ANSI Class 150 FF/RF; API 650 (20″ and 24″ only); EN1092 sizes available

Body and Seat

Aluminum, Steel, or 316 Stainless Steel

Pallets

Aluminum or 316 Stainless Steel

Diaphragm

FEP

Weights

Lead (standard); Steel available for aluminum and steel body configurations

Hinge Arm

Steel (316 SS for severe service)

Hinge Pin

Stainless Steel

Hardware

316 Stainless Steel

Options

Aluminum / steel / 316 SS body, Expanda-Seal diaphragm, ANSI or API-650 base, EN1092 sizes, limit switch for remote open indication, ATEX certification

Contact Support
2026 COST ESTIMATE

Contact Support

If you have questions not covered here, please contact the Cognesense support team for assistance.

Contact Us ↵

How is the 94210 different from a conventional emergency vent?

−

Conventional emergency vents are bolted lift-off covers. When the cover lifts during an overpressure event it remains open, and a technician must reinstall and re-gasket the cover to restore tank protection. The 94210 uses a hinged cover that reseats automatically after the event — no reinstallation labor, no lost cover, and no flange gasket replacement on every service cycle.

Does the 94210 serve fire-case emergency venting?

+

Yes. The 94210 supports fire-case emergency venting sizing, reaching roughly 60% of perfect-orifice flow at 40% overpressure and about 75% at higher overpressure. For applications requiring the highest fire-case capacity, the 9420X lift-cover series is the companion product.

Is the 94210 also a manway?

+

Yes. That is the point of the integrated design — a single roof penetration serves both emergency venting and inspection access. The hinged cover exposes the full opening in seconds, without breaking the flange gasket, so inspection outages are shorter and gasket-replacement cost is eliminated.

When should Expanda-Seal be specified?

+

Expanda-Seal is a self-energizing diaphragm seal that holds leakage under 0.5 SCFH at 95% of setpoint, compared with roughly 1.0 SCFH at 90% on a standard pallet. It is available on configurations with a setpoint of 1.5 oz/in² or higher, and is recommended on VOC-regulated tanks and on high-value product storage where emissions and product retention matter.

What size and mounting options are available?

+

The 94210 is available 8″ through 36″ with ANSI Class 150 FF/RF flange drilling. API 650 mounting is available in 20″ and 24″ sizes for direct tank-roof manway installation. EN1092 sizes are offered for metric compatibility. 30″ and 36″ configurations and higher setpoints should be confirmed with the factory.

Is remote indication available?

+

Yes. A limit switch is offered as an option to provide remote indication when the cover is open, supporting DCS integration and alarm handling on monitored tanks.

Summary

With over a century of tank-safety heritage inside Cognesense, the Shand & Jurs 94210 combines emergency pressure relief with rapid hinged manway access in a single roof penetration, protecting atmospheric storage tanks and fixed digester covers during routine and fire-case overpressure events. The hinged cover reseats automatically after actuation — eliminating reinstallation labor and gasket replacement that slow conventional vents. With optional Expanda-Seal for reduced vapor loss and sizes from 8 to 36 inches, the 94210 helps operators measure, monitor, and protect what matters most.
